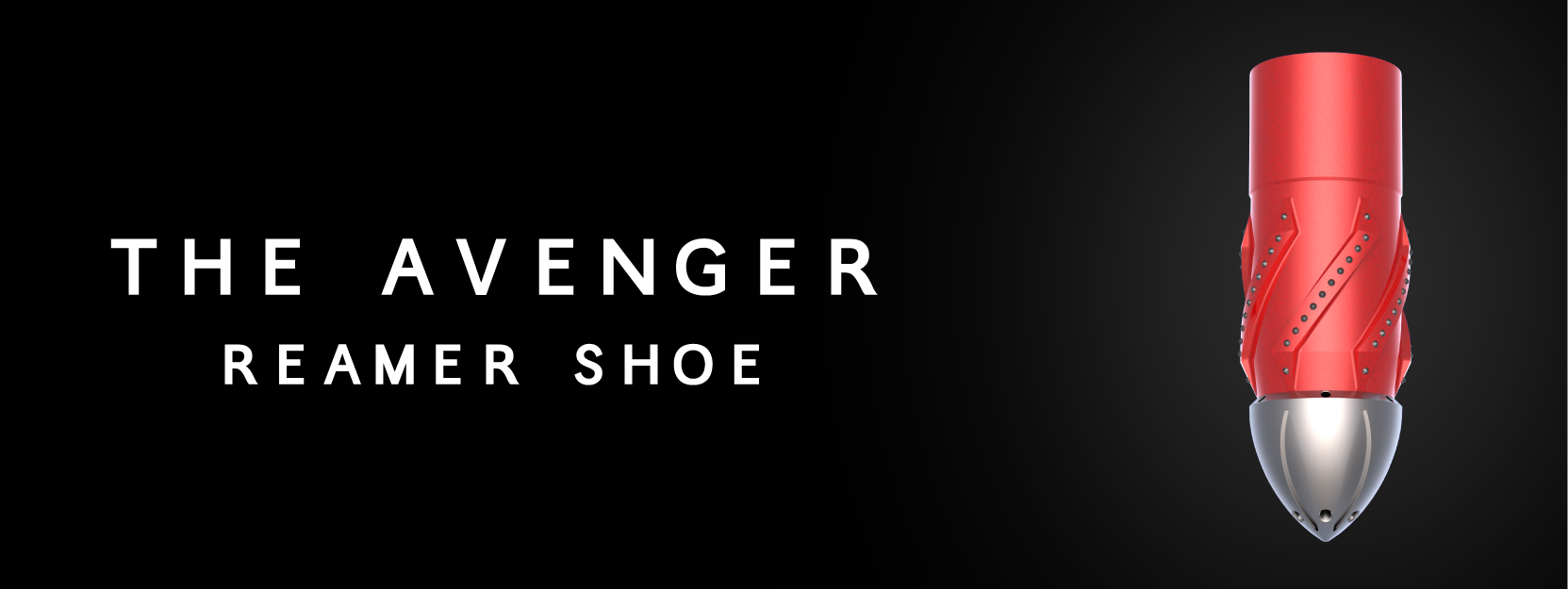

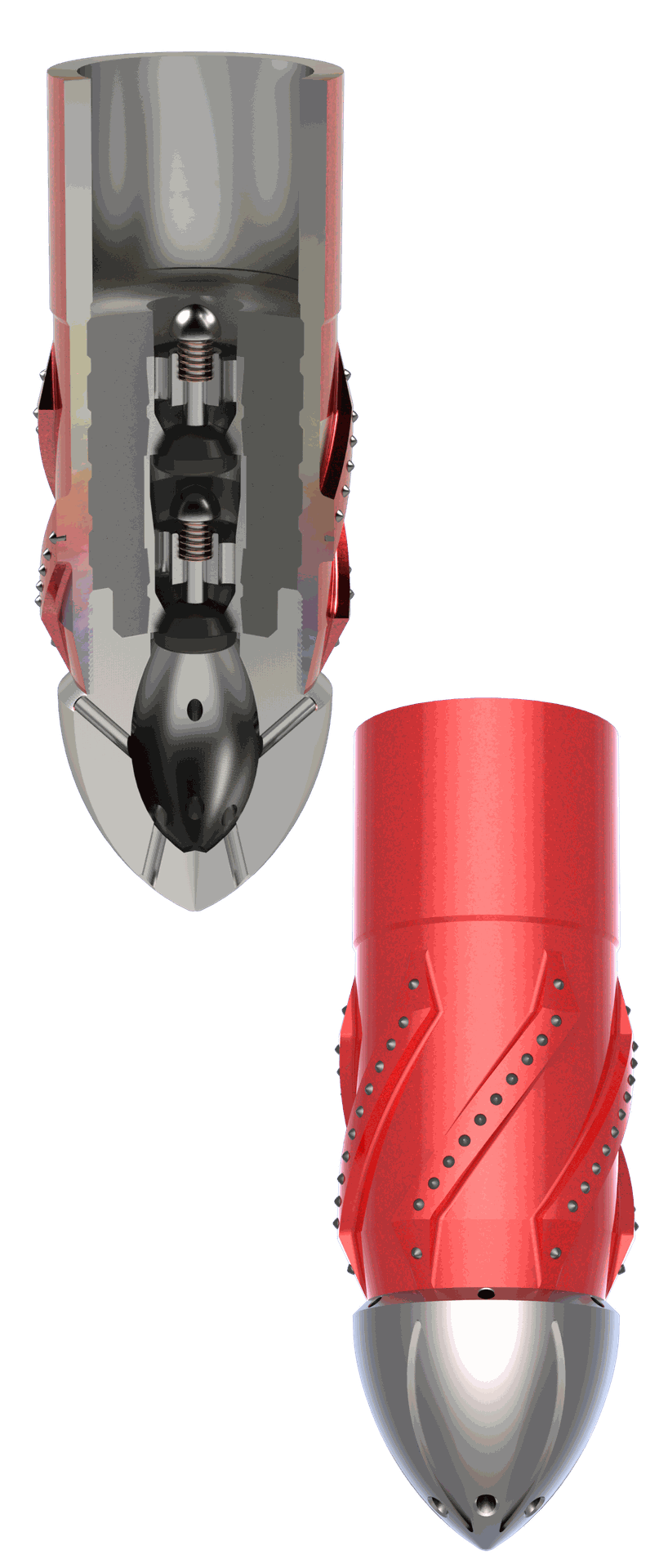

THE AVENGER™ RS

Description
The AVENGER™ Reamer Shoe is an intelligent product designed to aid the running of casing, liners and screens application where the client has concerns over potential difficult wellbore conditions such as swelling shales, ledges, crooked holes and tight spots.

TAKAMOL’s Reamer Shoe type “THE AVENGER™ RS” is commonly used in well bore conditions when reciprocating of casing is enough to keep the hole in gauge while running in hole.

Features

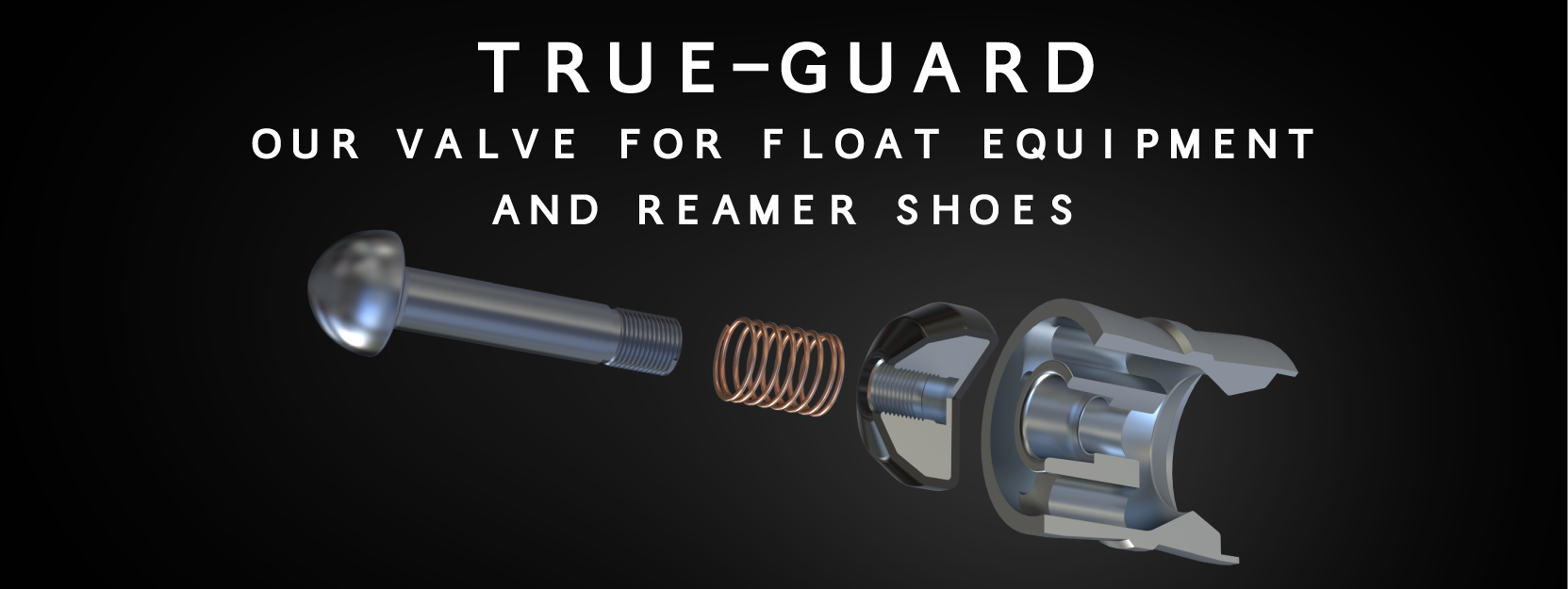

- Patent valve (True-Guard™) fabricated from PDC drillable advanced material.
- The poppet float valve design ensures positive sealing in vertical, horizontal and deviated wells allows for maximum circulation rates and durability.
- All parts used in float equipment are PDC drillable.
- High compressive strength cement ensure positive sealing against pipe and valve.
- All of our Cementing Equipment are compatible with common mud types (WBM-OBM-SBM) including high contents of LCM.
- Pointed Aluminum nose with 6 jet ports down and another 6 jet ports up with easy drill-out feature lead the casing through ledges and crooked hole.
- Slick body design helps reduce ECD.

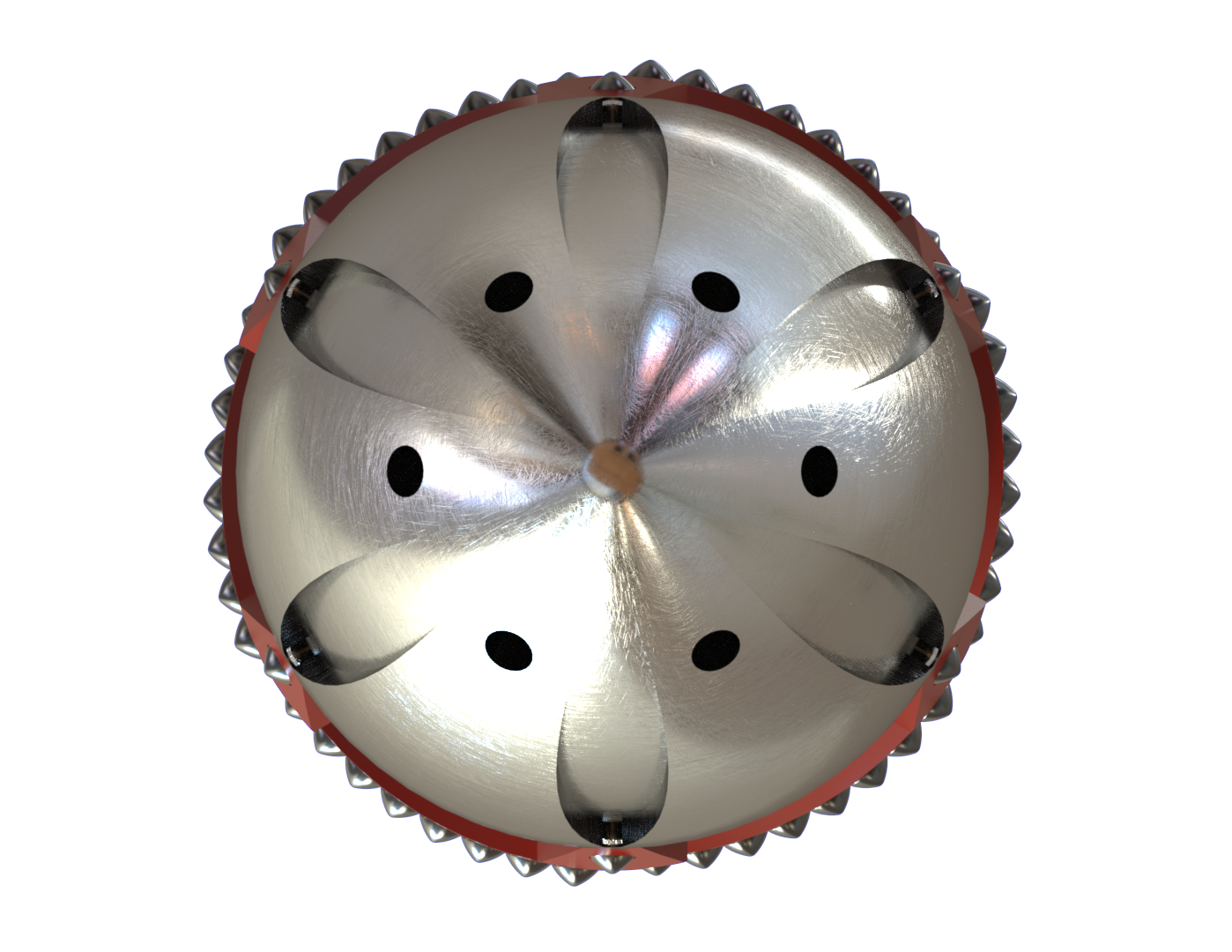

THE INNOVATED POINTED NOSE

Description
Revolutionary pointed aluminum nose with jetting ports increase the reliability of the reamer shoe and minimize the risk of being engaged with ledges and tight sports.

Features
• Pointed aluminum nose with 3600 up and down jetting ports guarantee full reaming of the hole with or without rotation and minimize the torque and drag generated while reaming.
• Enhanced removal of debris stuck at blades structure and increase reaming efficiency.
• High static load holding.
• Lotus structure enhance drill-out time for the nose.
• Simulated jetting flow up and down help keep the casing at center away from side walls.
