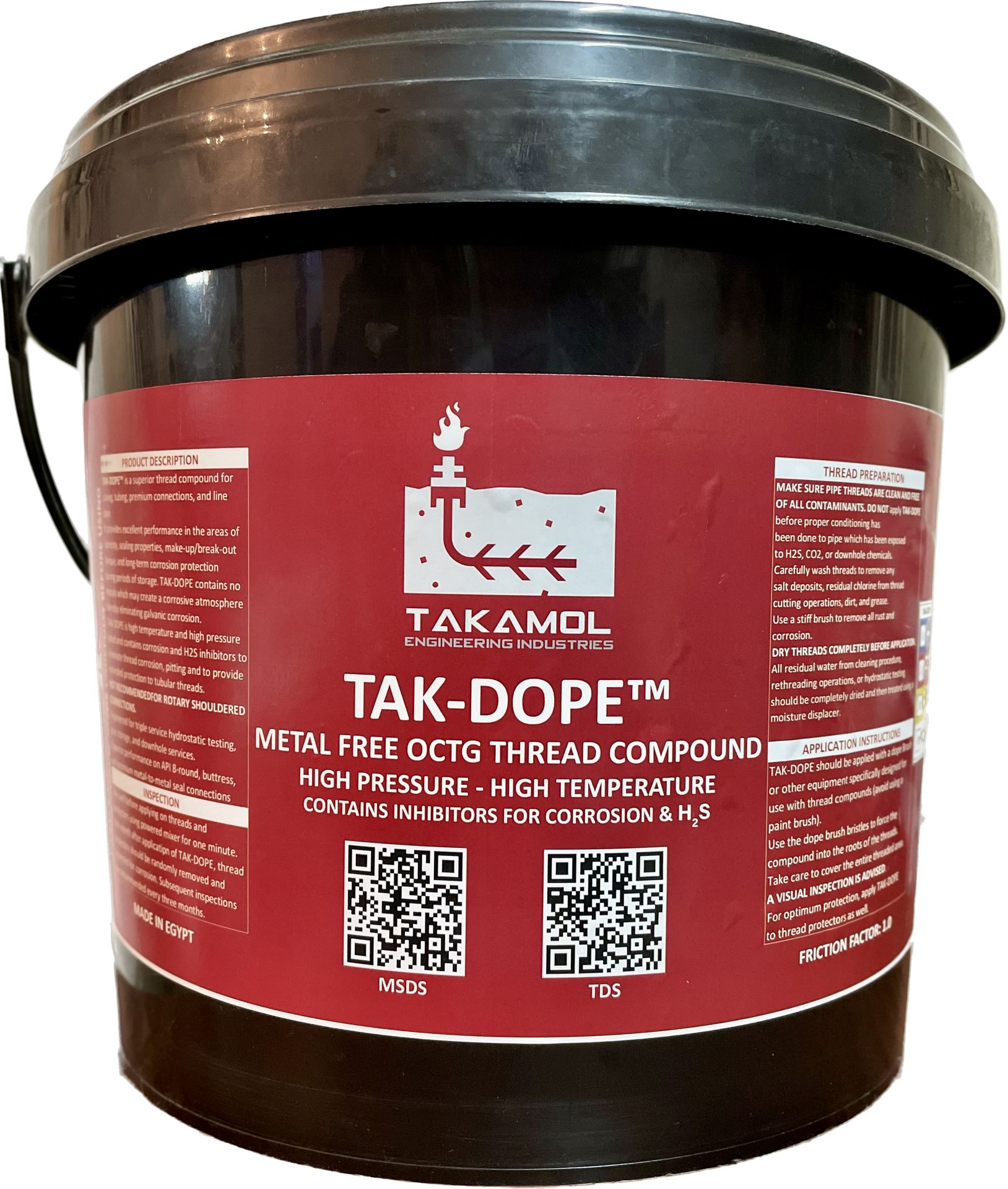

TAKDOPE
Description
TAKAMOL OCTG Metal Free thread compound (TAKDOPE) was developed as a metal-free alternative to API Modified.
Our metal free dope exceeds all performance specifications described in API specification 5CT and set forth in API Recommended Practice 5A3.
This environmentally safe thread compound doesn’t contain any Lithium, lead, zinc, aluminum, copper or other metallic additives which could contaminate a drill site.
TAKDOPE-OCTG dope offers several advantages, making it a popular choice for downhole applications:
- Water Resistance: It performs exceptionally well in wet conditions, resisting washout from fresh, salt, or acidic water.
- High-Temperature Stability: Unlike many other greases, it maintains its structure and doesn't melt under high heat.
- Mechanical Stability: It withstands heavy loads and high shear forces, ensuring consistent lubrication.
- Corrosion Protection: It forms a protective barrier against moisture and corrosive elements, extending equipment life.
- Oxidation Resistance: It resists hardening or becoming brittle over time, reducing the need for frequent reapplication.
- Extended service life: I can last twice as long as other grease types, with minimal loss in performance even after 1000 hours of operation, resulting in cost savings and reduced downtime.
Applications
For use as a thread sealant and lubricant for interference threaded connections on line pipe, tubing and casing, not recommended for rotary shoulder connections and not
designed to be used as a storage compound.
| NLGI | 1 |
| Friction Factor (API RP 5A3 Annex I) | 1.0 |
| Appearance | Black, Grainy |
| Dropping Point (ASTM D-2265) | ≥698°F (≥370°C) |
| Flash Point (ASTM D-92) | ≥777°F (≥414°C) |
| Brushable to | 5°F (-15°C) |
| Shelf Life (unopened container) | +Four years |
| Penetration (ASTM D-217) | 269-278 |
| Specific Gravity, at 77°F (25°C) | 1.18 |
| Four-Ball EP Weld Point, kgf (ASTM D2596) | 500 |
| Base Oil | Mineral oil |
| Base Grease | Calcium Sulfonate |
| Solid Content | Graphite + Minerals |
