KTH FLANGE

Description
KTH flanges combined with Stripper Rubbers or Wraparounds provide a convenient way of suspending tubing in tension along with a tubing anchor on wells utilizing artificial lift.

Tubing is easily adjusted up or down to accommodate formation depth and fluid levels.

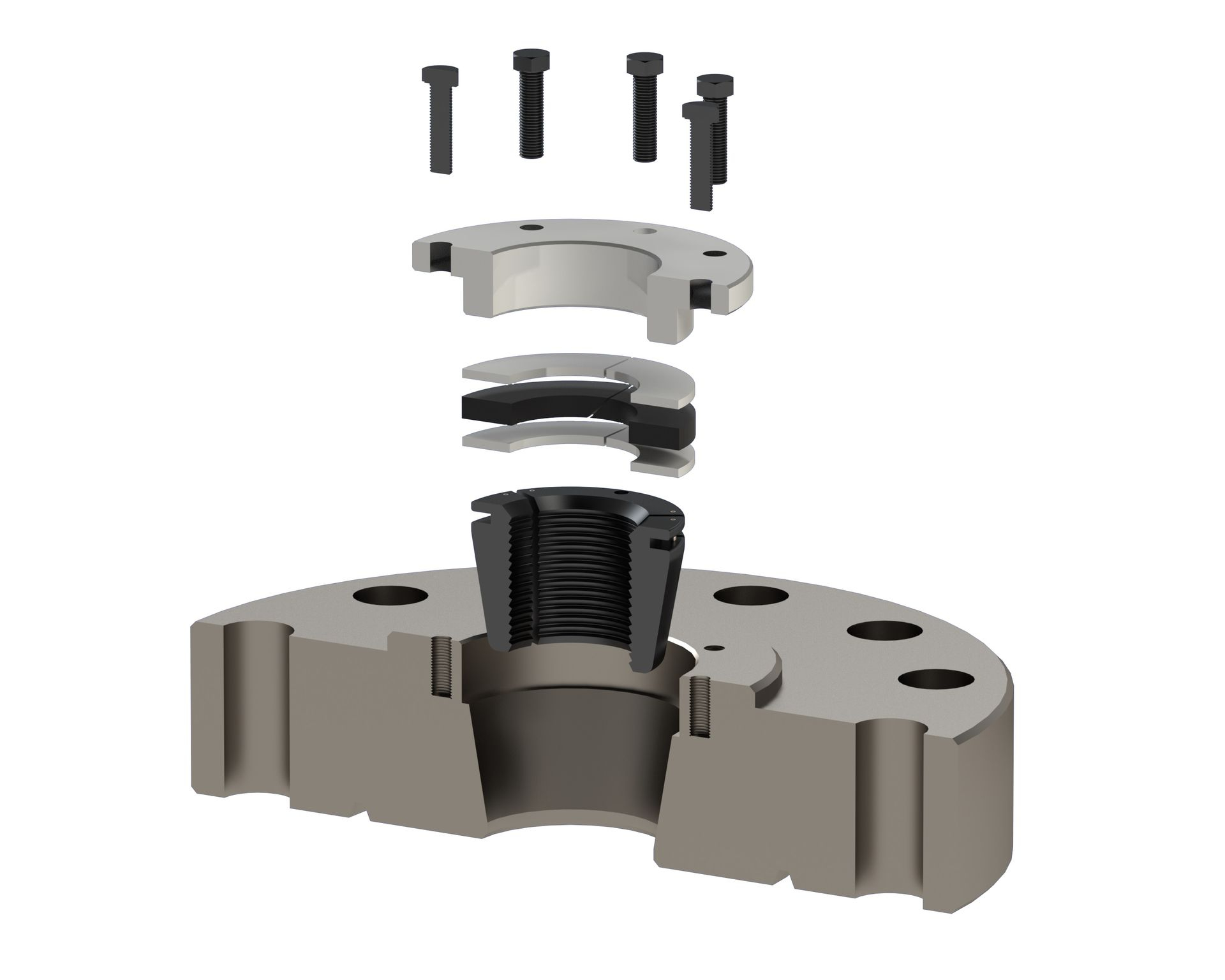

Features
• Flange Body: Forged Alloy Steel with 60- 75Ksi strength.
• Upper and Lower packing support: Carbon Steel.
• Rubber Seal: Nitrile (Shore Hardness 70).
• Slips: NiCrMo Case Hardening Alloy Steel with surface hardness 58-62 HRC.
• Hold Down Flange: Carbon Steel.
• Screws: Alloy Steel hexagon head bolt screw grade 10.9.
